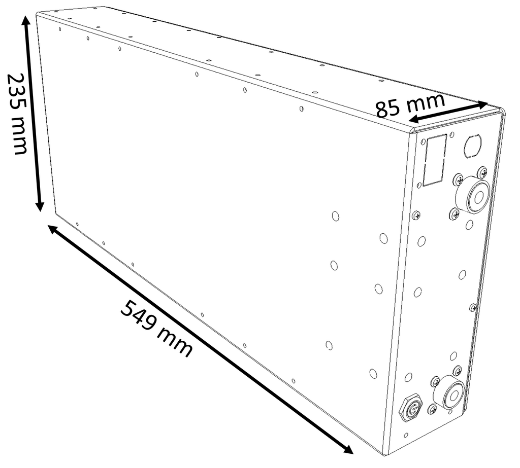

Total Terminal Length: 559mm
- Parallel Connections: Unlimited
- Series Connections: Max 2

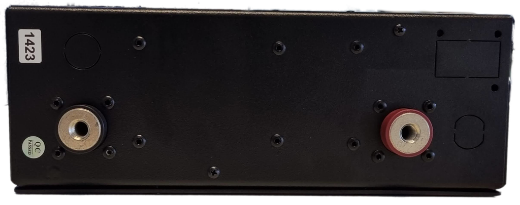

- M8 Threaded Hole Terminals
- 120A Continuous Discharge
- 240A Peak Discharge
- Temperature Protection
- Over/Under Voltage Protection
- Overcurrent Protection
- Short Circuit Protection
- Powder-coated aluminium enclosure
- Compact shape and size

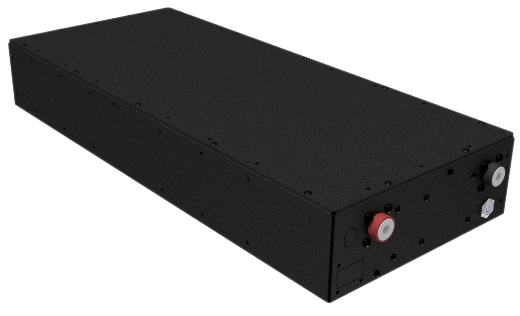

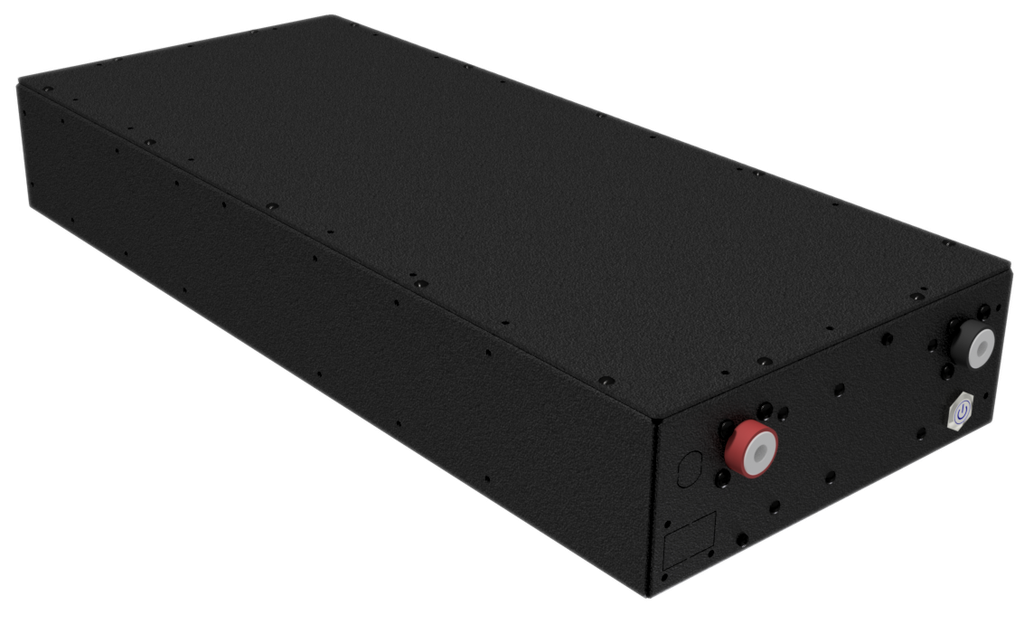

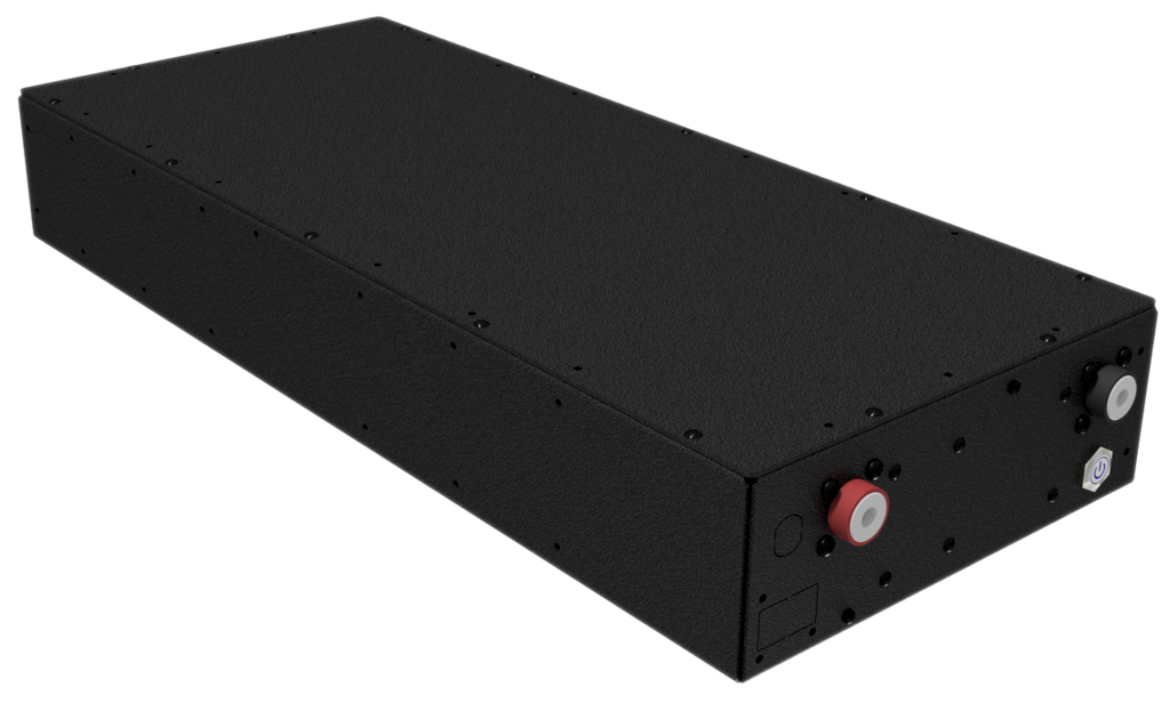

Constructed with the latest lithium iron phosphate cells, these high-quality prismatic cells are housed in a durable metal case. The battery features an Australian-designed and developed inbuilt Battery Management System (BMS). Weighing just under 17 kg and boasting a unique slimline shape, it is ideal for space-constrained installations. It can be conveniently placed behind a seat, mounted on a wall, or positioned at the back of a cupboard. With a maximum continuous charge/discharge current of 120A, the battery can be used in parallel to expand capacity. Charging and discharging are facilitated through the M8 threaded hole terminals. The robust aluminium outer enclosure ensures a safe, lightweight, and powerful unit that serves as an excellent foundation for next-generation battery systems.
