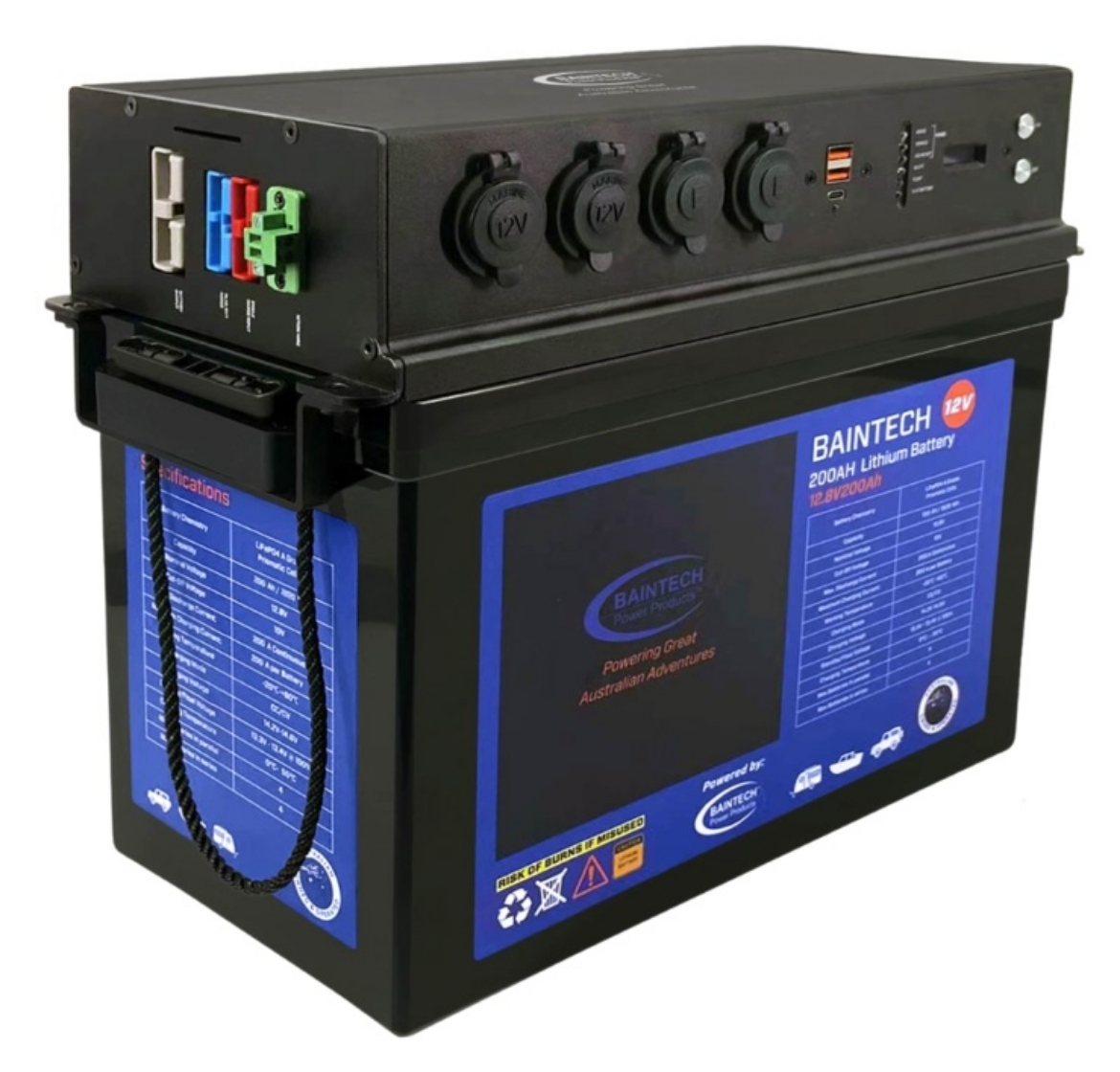

BAINTECH 12.8V 200 AMP HOUR LIFEPO4 POWERTOP WITH BUILT-IN 40A DC-DC CHARGE AND 40A MPPT SOLAR REG.

$2,700.00 Inc. GST

| Be the first to review this product

UNIT

Stores:

Mackay Showroom (1)

Townsville Showroom (1)

SKU: BT200A-POWERTOP

increase decrease

Overview
Specifications
Attachments
Contact Us

FEATURES AND BENEFITS:

LIFEPO4 TECHNOLOGY
INTERGRATED BATTERY MANAGEMENT SYSTEM (BMS)
LED INDICATOR LIGHT - FULLY CHARGED, SOLAR, ALTERNATOR, OVER & UNDER VOLTAGE, OVERCURRENT
DISPLAY SCREEN - VOLTAGE, CURRENT, STATE OF CHARGE, ALARM INFORMATION
INPUT:
- ANDERSON 50A (BLUE): ALTERNATOR, 11.5V-16V DC MAX 40A, SOLAR
- ANDERSON 50A (RED): SOLAR, 11.5V-50V DC, MAX 40A
- GREEN PLUG: IGNITION
OUTPUT:
- ANDERSON 120A (GREY) : 10V-14.6V DC, MAX 120A
- 2 X CIGA-SOCKETS : 10V-14.6V DC, MAX 10A
- 1 X ENGEL SOCKET : 10V-14.6V DC MAX 10A
- 2 X USB-C : 5V3A 9V3A MAX 27W
- 2 X USB-A QC3.0 : 5V3A 9V2A 12V1.5A MAX 18W
- 1 X USB-C PD3.0 5V3A 9V3A 12V3A 15V3A 20V3A MAX 60W
- 2P WIRING TERMINAL - IGNITION
BLUETOOTH CONNECTIVITY WITH MOBILE APP
LONG CYCLE LIFE - 3000 CYCLES AT 80% DEPTH OF DISCHARGE
5 YEAR WARRANTY

Products specifications

Attribute name	Attribute value
Weight	21.5 kg

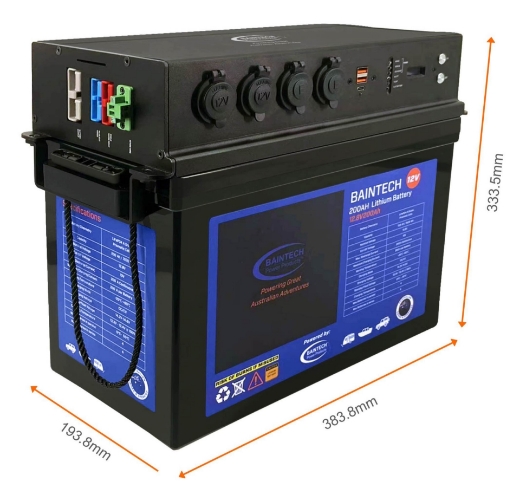

Dimensions (L x W x H mm)	384 x 194 x 333 mm

Product Files

BT200A-POWERTOP Specifications.pdf
