The ZTS Multi-Battery Tester™ (MBT-1) provides a comprehensive means of testing the state of charge or state of power for more than 30 battery types.

• Made in U.S.A. Patents 6,823,274 and D569285.

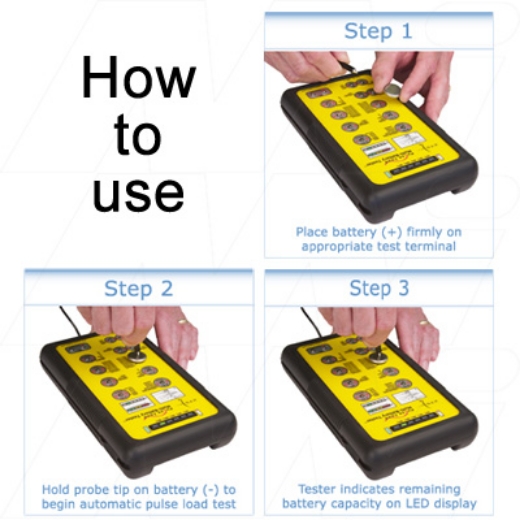

• Easy to use - no switches or settings. Quickly and easily identify weak or failing batteries.
• Patented high accuracy Pulse Load Test - Ideal for electronics, remotes, photo, smoke detectors, games, medical, and more.

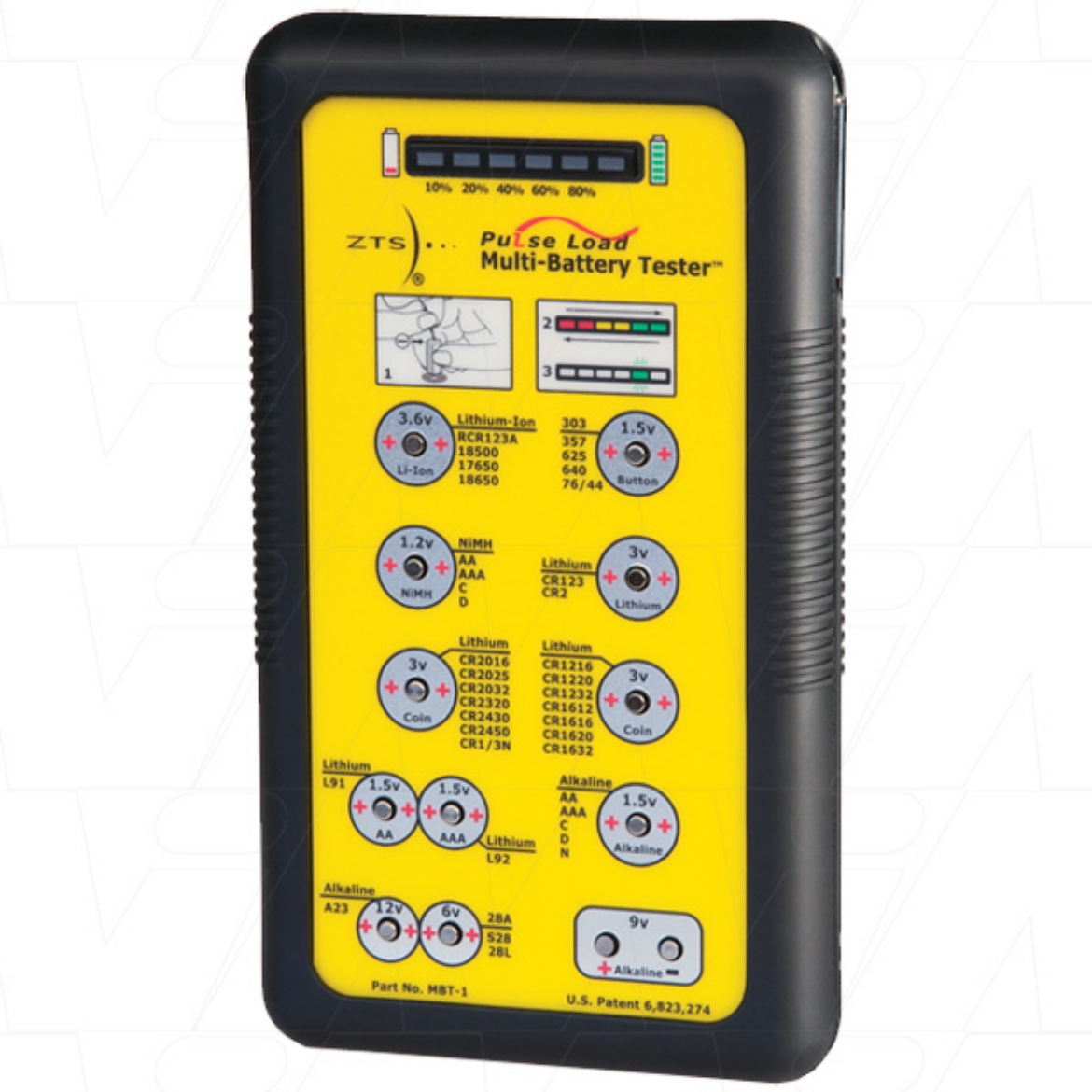

• Testing capability (battery list):
  • 3.6V/3.7V Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
  • 1.5V button cell [S76, A76, A625, A640, LR44, 357, 303]
  • 1.2V NiMH/NiCd rechargeable [AA, AAA, C, D]
  • 1.5V lithium [AA L91, AAA L92]
  • 3V lithium coin CR1216, CR1220, CR1232,CR1616, CR1620, CR1632, CR2016, CR2025, CR2320, CR2032, CR2430, CR2450, 58L, 1/3N]
  • 6V '28' series [28A, S28, 28L, 544, 4LR44]
  • 3V lithium cylindrical [CR123, CR2, CRV3]
  • 1.5V alkaline [AA, AAA, C, D, N]
  • 12V alkaline [A23] 9v alkaline & carbon zinc
• Power (internal): 4 AA batteries (not included)
• Display: 6 LEDs - colors green, yellow, red
• Pulse Load: magnitude varies according to battery type
• Operation: microprocessor-controlled test cycle
• Test duration: 2-3 seconds, varies according to battery type
• Contact terminals: solid brass, nickel-plated
