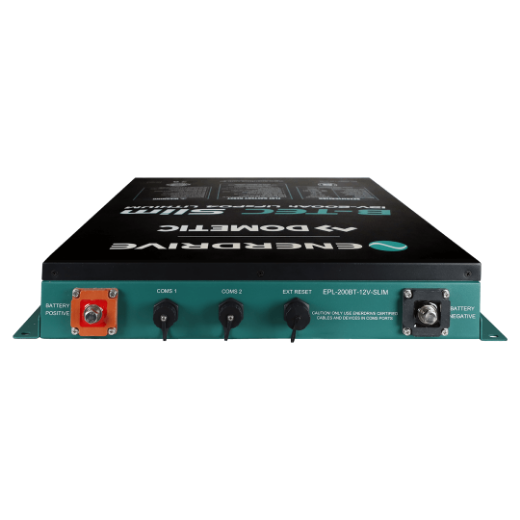

- Extremely compact size W 530 x H 600 x D 83 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port
- Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress
- Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality
- Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress
- Battery Management System – Protects the battery from over charge, over discharge, over temperature & short circuit

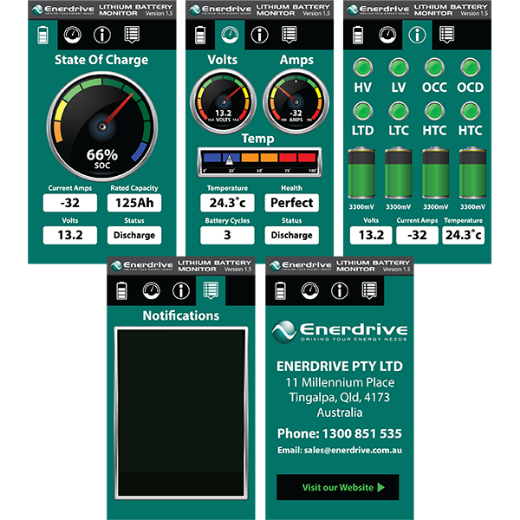

- Smart Phone Monitoring System – By downloading the Android™ or Apple® app, you can monitor Battery Capacity, Battery Voltage, Battery Current (Amps), Battery State of Charge (SOC), Battery State of Health (SOH), Battery Status, Individual Cell Voltage, Battery Temperature, Battery Cycles, Battery Alarms & Battery Event Information
- Capable to be paralleled to a second B-TEC 12V 200Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS
- Able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery
Please note B-TEC batteries must not be installed:
- In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual
- In wet areas such as caravan chassis mounts, open ute trays or boat deck areas
- Inside compartments dedicated to carrying gas
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
The Slimline incorporates a “Built-In Reset Port" with a separate plug for wiring in a Remote switch making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the remote reset button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
